In mixing technology, the sealing of a rotating agitator shaft in the passage through a vessel wall represents the principal sealing task. Different sealing principles are used depending on operating conditions such as pressure, temperature, and speed. Most mechanical seals of agitators consist of gland plate with Mating ring and sleeve with seal ring and elastomeres for leakage prevention. They are usually top,bottom and side mounted on the vessel.

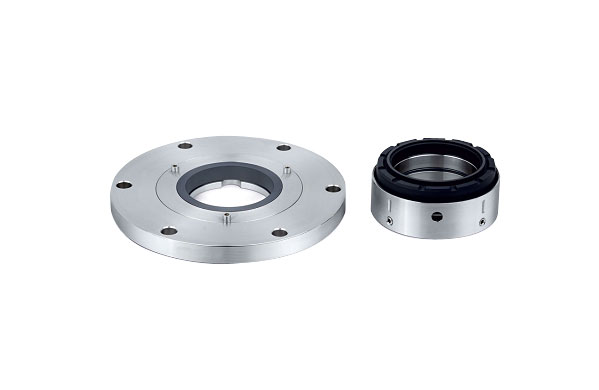

Dry Running Agitator Seals are designed for Top, Bottom and Side Entry Drives in Agitators, Mixers OR Blenders in case when Non-Aggressive and Non-Hazardous Media are sealed with the use of Cooling Liquid Preventing against Dry Running. Construction of MOC designed of these Seals purpose of holding whole Rotary Parts together with the help of Snap Rings which make easy for Installation and Removal.
| Parameter : | |
|---|---|
| Shaft Dia | : 25mm to 150mm |
| Pressure | : Full Vacuum to 6 bar |
| Temperature | : -30°C to 140°C |
| Speed | : 900 RPM |
Seal Ring Faces : Carbon and SiC
Seat Faces : SiC and TC
Elastomer : Viton, TTV, FEP and FFKM
MOC : SS 316 - CHANGE OF MOC ON REQUEST

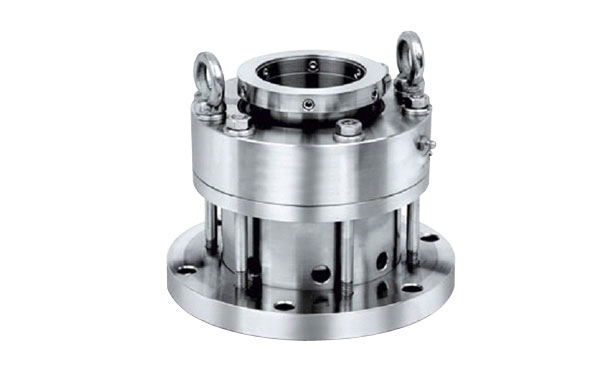

Single Agitator Mechanical Seals are designed for Top, Bottom and Side Entry Drives in Agitators, Mixers OR Blenders and where Non-Aggressive and Non-Hazardous Media are Sealed with the use of Cooling Liquid preventing against Dry Running. Construction of MOC designed of these Seals purpose of holding whole Rotary Parts together with the help of Snap Rings which eases while Installation and Removal of Seals.
| Parameter : | |
|---|---|
| Shaft Dia | : 25mm to 150mm |
| Pressure | : Full Vacuum to 30 bar |
| Temperature | : -30°C to 260°C |
| Speed | : 400 RPM |
Seal Ring Faces : Carbon and SiC
Seat Faces : SiC and TC
Elastomer : Viton, TTV, FEP and FFKM
MOC : SS 316 - CHANGE OF MOC ON REQUEST

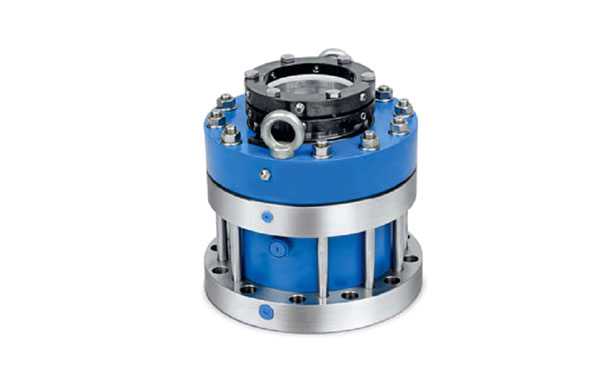

Double Agitator Mechanical Seals are designed for Top, Side and Bottom Entry Drives in Agitators and Reactors with balance and unbalance configuration. Compact Economical Cartridge Double Mechanical Seal for Agitators and Reactors. Seal Design Incorporate with location of Bearings very close to the Seal. These Seal specially designed for any mixed and pressurized liquid in Vessel with Top Entry Agitators where no leakage in Process Gas OR Fluids to the Environment can be tolerated. Complete Pre-assembled Tested Unit ready for installation. These Seal are used for Exclusive Solid Seal Faces, Stationary Seats, thus Lowest Level of Seal Face distortion when Expose to Compressive Load and Thermal Pressure.
| Parameter : | |
|---|---|
| Shaft Dia | : 25mm to 150mm |
| Pressure | : Full Vacuum to 30 bar |
| Temperature | : 30°Cto260°C |
| Speed | : 400 RPM |
Seal Ring Faces : Carbon and SiC
Seat Faces : SiC and TC
Elastomer : Viton, TTV, FEP and FFKM
MOC : SS 316 - CHANGE OF MOC ON REQUEST

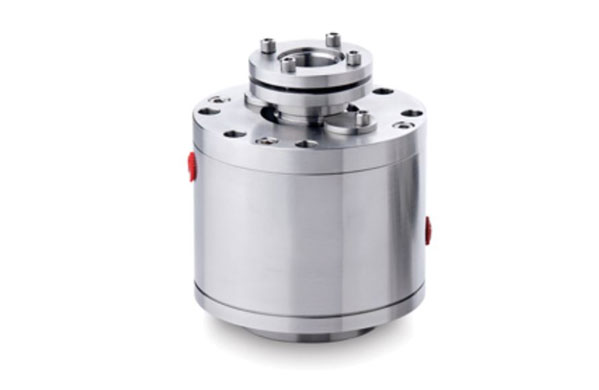

In Dry gas or gas lubricated agitator seal grooves are machined into the mating ring faces. Then pressurized gas is injected between the seals. As the shaft rotates, gas flows into the tip of the groove and which in return distances the faces creating thin film of gas for small amount ranging in micron. thus separating the faces. This seal continues to operate, even if barrier gas pressure is momentarily lost, maintaining the gas film between the barrier gas and the process.
| Parameter : | |
|---|---|
| Shaft Dia | : 25mm to 150mm |
| Pressure | : Full Vacuum to 30 bar |
| Temperature | : -30°C to 260°C |
| Speed | : 900 RPM |
Seal faces: Carbon and SiC
Seat faces: SiC and TC
Elastomer : Viton, TTV, FEP and FFKM
MOC : SS 316 - CHANGE OF MOC ON REQUEST
