Cartridge Mechanical Seal
A Cartridge seal is a design with complete installation on site with no requirement of trchnical experts . A cartridge seal design should be used whenever possible to ensure proper seal assembly and optimum mechanical seal MTBFs. The use of cartridge mechanical seals significantly minimizes installation errors.
Single Cartridge Balance seal are Recommended for Clean media application. This seal is Standard for using where Corrosive Liquid are being Processed. Construction of these Seal designs holds whole Rotary Parts together with the help of Snap Rings which is make easiest for Installation and Removal. This Type of Seals is designed for using for Petroleum Products, Low Aggressive Chemicals and Refrigerants in Centrifugal pumps and other Equipment with Rotating Shafts.

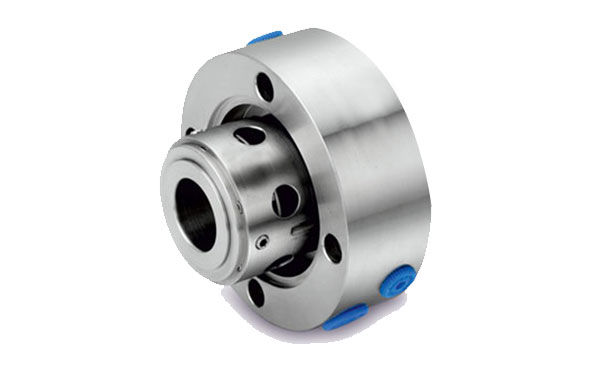

Single Cartridge Balance Mechanical Seals
(Type RT-S60)
- Balance pusher seals.
- Single and dual configuration.
- Dual directional.
- Mechanical seal drive to reduce slippage on shaft or sleeve.
- Heavy duty seal faces remain flat during operation to minimize leakage.
- Hydraulicallybalance seal forhigher pressure &generatelow heat on faces.
- Flushing ports for uniform face cooling.
- Advance designed of spring holder pumping ring of flushing spring area.
- Unitized, Easy-to-fit design.
| Parameter : |
|---|
| Shaft Dia |
: 10mm to 100mm |
| Pressure |
: Up to 35 bar |
| Temperature |
: -30°C to 260°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Carbon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC :SS 316, HAST-C Alloy - 20
This seals are single acting pre-assembled cartridge mechanical seals, which could be directly installed without any dimensional adjustment during installation. These cartridge unbalanced seals are independent of direction of rotation being designed to handle slurries, sludge, thick syrup and polymerising fluids. The spring provided in the cartridge construction are being isolated from the fluid enhancing the seal life.

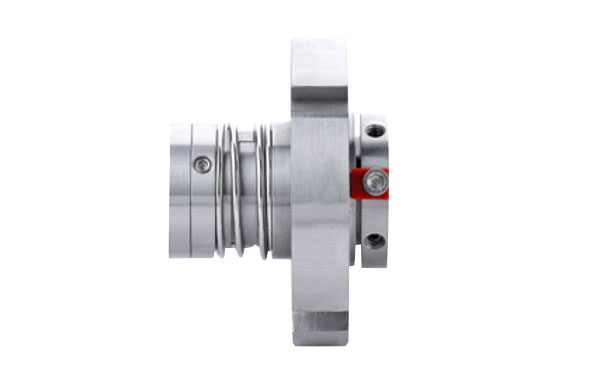

Single Cartridge Unbalance Mechanical Seals
(Type RT-S61)
- Single seal, Inside mounted
- Unbalanced
- Independent on direction of rotation
- Dependent on direction of rotation
- Easy Installation, Field repairable
- Interchangeable mating rings & seal ring
| Parameter : |
|---|
| Shaft Dia |
: 20mm to 100mm |
| Pressure |
: Up to 10 bar |
| Temperature |
: -30°C to 150°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Cabon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316,HAST-C and Alloy 20
Double Cartridge balance Seal are Recommended for Clean and dirty media application . Seal can tolerate reversal pressure. Double Cartridge balance Seal is Standard for using where Corrosive Liquid are being Processed. We are the top manufacturer of Double Cartridge Seal Type ZR600/D in mumbai, INDIA This Type of Seals is designed for using for Petroleum Products, Low Aggressive Chemicals and Refrigerants in Centrifugal pumps and other Equipment with Rotating Shafts.

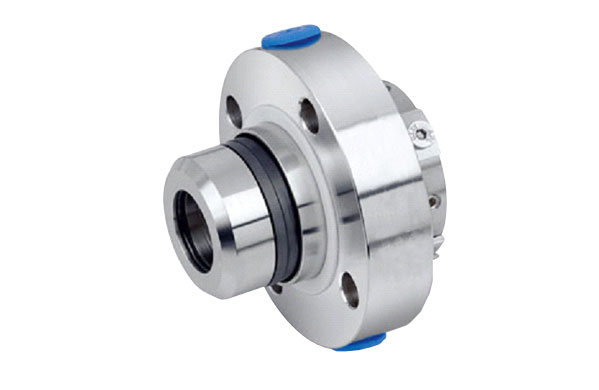

Double Cartridge Mechanical Seals
(Type RT-S63)
- Balance pusher seals.
- Single and dual configuration.
- Dual directional.
- Mechanical seal drive to reduce slippage on shaft or sleeve.
- Heavy duty seal faces remain flat during operation to minimize leakage.
- Hydraulically balance seal for higher pressure & generate low heat on faces.
- Flushing ports for uniform face cooling.
- Advance designed of spring holder pumping ring of flushing spring area.
- Unitized, Easy-to-fit design.
| Parameter : |
|---|
| Shaft Dia |
: 10mm to 100mm |
| Pressure |
: Up to 35 bar |
| Temperature |
: -30°C to 260°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Cabon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316, HAST-C Alloy - 20
This seals double acting cartridge mechanical seals having integral sleeve and gland plate. These multi spring design seal are pre-assembled, which could be directly installed without any dimensional adjustment during installation. These seals are unbalanced, independent of direction of rotation.

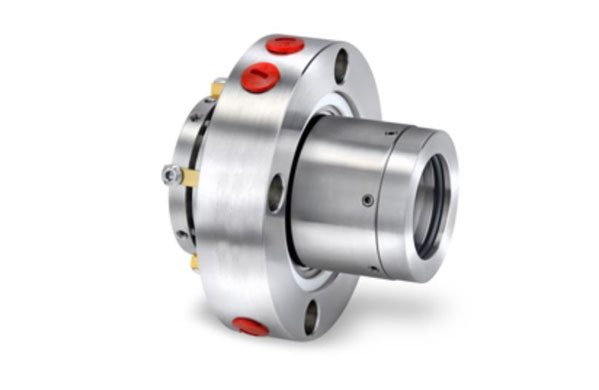

Double Cartridge Unbalance Mechanical Seals
(Type RT-S64)
- Double seal, Cartridge unit
- Inside Mounted, Unbalanced
- Easy Installation, Field repairable
- Interchangeable mating rings & seal ring
| Parameter : |
|---|
| Shaft Dia |
: 10mm to 100mm |
| Pressure |
: Up to 35 bar |
| Temperature |
: -30°C to 260°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Cabon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316, HAST-C Alloy - 20
This Seal is high pressure and high speed cartridge designed for high pressure applications, like hot water, crude oil, light hydrocarbons. These seal are provided with single, double or tandem arrangement, which are widely used for applications such as boiler feed water pumps, main crude oil transportation pump and multi-phase pumps. Its sturdy designed and drive arrangement makes the seal suitable for high pressure applications. Multiple spring designed provides uniform face loading.

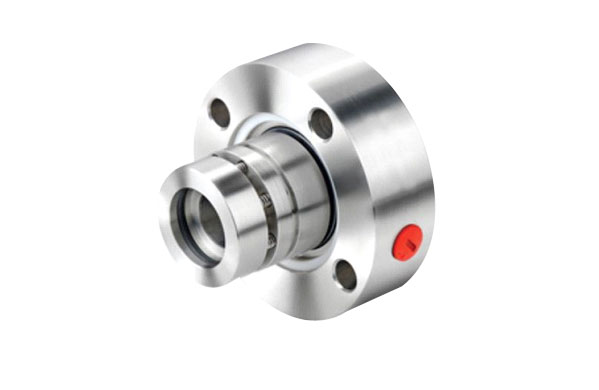

High Pressure Balance Mechanical Seals
(Type RT-S68)
- Single and Double seal
- Inside mounted
- Balanced
- Independent on direction of rotation
| Parameter : |
|---|
| Max. Pressure |
: 20mm to 100mm |
| Max. Pressure |
: Up to 30 bar |
| Max. Temperature |
: 30°C to 250°C |
| Max. Speed |
:3000 RPM |
Seal Ring Faces : Cabon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316,HAST-C Alloy-20
