Pusher Mechanical Seals
A non-pusher type seal consists of a bellows assembly. The bellows is a component that acts as both the load element (like a spring in a pusher type) and a secondary sealing element (like an ‘O’ ring in a pusher type). Because the bellows prevents any leakage to the atmospheric side of the seal, and has a large clearance between itself and the shaft or sleeve, it can move freely in the axial direction (no dynamic ‘O’ ring), reducing the potential for hang up.
It is a Compact Single Spring Rubber Bellow Mechanical Seals for universal general purpose for Water / Water Based Solution like Oils, Fuels and Other Fluids and even with some Content with Abrasive and for a very wide operating condition designed for Centrifugal Pump. Rotary Equipment and Industrial applications (Food Processing, Water System, Waste Water Treatment for Petrochemical Processing, Pulp and Paper)

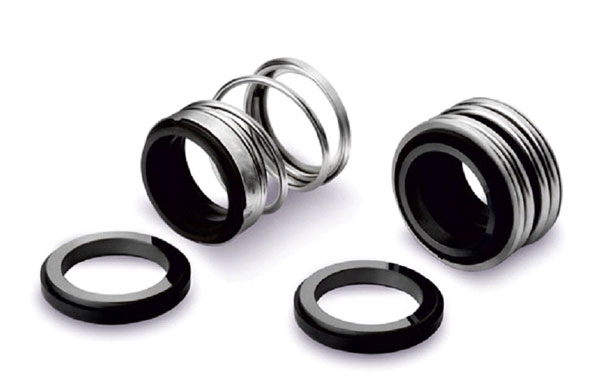

Rubber Bellow Mechanical Seals
(Type RT-R10/RT-R11)
- Single, low cost and mass production Seal with Rubber Bellow.
- Central Point Non-Clogging Coil Spring Seal.
- Spring Design Seal is suitable for duel-direction of Shaft Rotation.
- Bellow Design Seals for Pressure supported and eliminates folds.
- Bellow Seals Protecting against Twisting.
- Unitize, easy-to-fit design seals
| Parameter : |
|---|
| Shaft Dia |
: 10mm to 100 mm |
| Pressure |
: Up to 8 bar |
| Temperature |
: -20°C to 180°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Cabon, SiC & TC
Seat Faces : NiR, Ceramic, SiC & TC
Elastomer : Viton, EPDM, NBR
MOC : SS 304 / SS 316
PTFE Mechanical Seals are Specially Designed for using Extremely Corrosive Duties. All Metal Components are including springs are Isolated from the Sealed, Aggressive Medium. These Seal Design Faces are molded with Glass Filled PTFE with Highly Flexible PTFE Bellow. Simple checkout method function and cleaning possibility as this Mechanical Seal located easily accessible outside the pump.

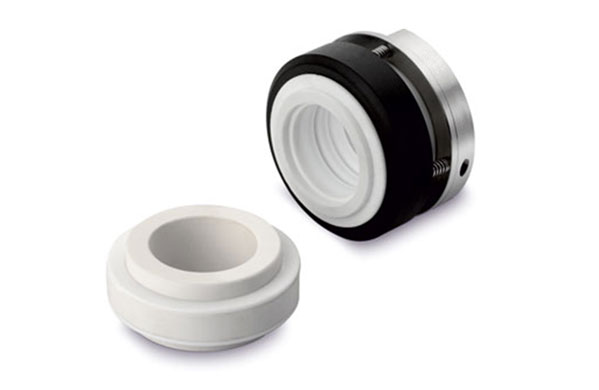

PTFE/Teflon Bellow Mechanical Seals
(Type RT-T12/T12R)
- PTFE Bellow Mechanical Seal
- Dual Directional Seal.
- Outside Mounted Seal
- Hydraulically Balanced PTFE Bellow Mechanical Seal
- Multi-Spring Design Seal
| Parameter : |
|---|
| Shaft Dia |
: 16mm to 80 mm |
| Pressure |
: Up to 5 bar |
| Temperature |
: -30°C to 180°C |
| Speed |
: 3000 RPM |
Seal Ring Faces : Cabon, SiC and TC
Seat Faces : Ceramic and SiC
Elastomer : PTFE and GFT
MOC : SS 316, Hast -C and Alloy 20
Bellow MOC : PTFE + GFT Composite
Metal Bellow mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps and other equipment with rotating shaft. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.

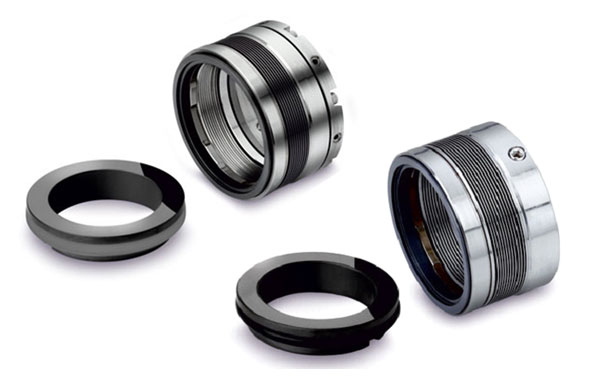

Metal Bellow Mechanical Seals
(Type RT-M14/RT-M15)
- Single Acting.
- Dual directional
- Inside mounted.
- Inherently Balanced Mechanical Seal.
- Independent of direction of rotation.
