LEADING SEAL SUPPORT SYSTEM SEALS COMPONENTS MANUFACTURER
Seal support system is ergonomically engineered under the strict supervision of experienced quality controllers. These are widely recommended by clients owing to its application specific design and robustness. These can be availed in various technical specifications, range, dimensions and other specifications following the precise demands and requirements of clients. Owing to its consistent performance, these are widely recommended by various numbers of clients.

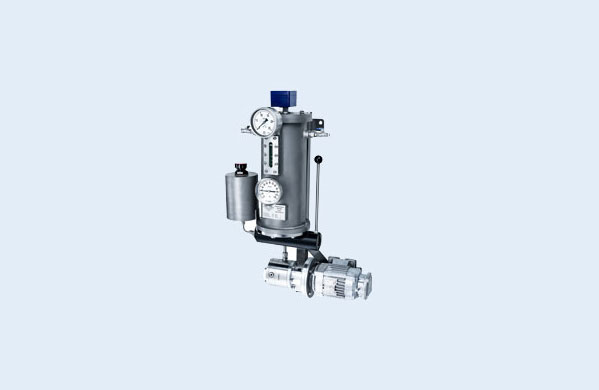

Thermosyphon System
It is available in various technical specifications. These are made under the firm direction of experienced quality controllers. Owing to its precise design, sturdiness and robustness, these devices are widely recommended by various numbers of clients. These are acclaimed for longer service life, precise design and effective usage. These are available in various ranges. Thermosyphon System are carefully designed and manufactured with great precision and care. Please Visit us to see our full range of Seal Support System - Thermosyphon System to meet all your requirements. We are the manufacturer of Seal Support System - Thermosyphon System in Mumbai INDIA.
Thermosyphon System
- Cooling water inlet : 1/2” NPT
- Cooling water outlet : 1/2” NPT
- Buffer inlet : 1/2” NPT
- Buffer outlet : 1/2” NPT
- Filling connection : 1/2” NPT
- Pressure gas connection : 1/2” NPT
- Refilling connection : 1/2” NPT
- Drain : 1/2” NPT
Capacity |
: 7.5 ltrs |
Pressure |
: 10 bar |
Hydraulic Teast Pressure |
: 15 bar |
Max. Working Temp |
: 150° C |
Heat transfer area of cooling coil |
: 0.226 m2 |
Cooling water flow rate recommended |
: 10 ltrs/min |
Pressure guage
Level guage
Hand pump
Thermosyphon shell : C.S / SS304 / SS316
Cooling coil : SS 304/ SS 316
Empty weight : 34 kg (approx)

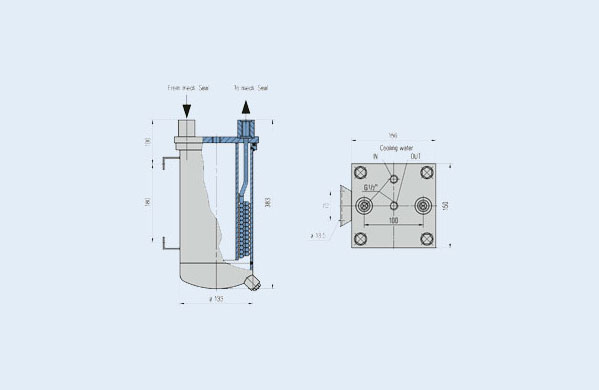

Heat Exchanger
Heat exchanger are used for bringing down the temperature of flushing before it enters the seal chamber. When the mechanical seals are used with API plan 21 & 23, these heat exchanger are used. Special features of this heat exchanger is that its cooling can be removed for cleaning purposes.
Heat Exchanger
- Effective cooling around a guide tube.
- Cooling capacity up to 10.5 kW.
- Excellent value for money.
- Vessel can be dismantled for optimum cleaning of the cooling water side
- Universal usage parts in contact with the buffer medium are made of SS 316
- Circulation based on API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41
Parameter : |
Cooling area of coil |
: 0.8 m2 & 0.4 m2 |
Design pressure for coil |
: 80 bar & 46 bar |
Design pressure for shell |
: 10 bar |
Speed |
: 3000 RPM |
Outer shell – C.S / SS304 / SS316
Cooling coil – SS304 / SS316
Elastomere – FKM
Cooling waer inlet : 3/4" BSP
Cooling water outlet : 3/4" BSP
Vent & Drain : 1/4" BSP

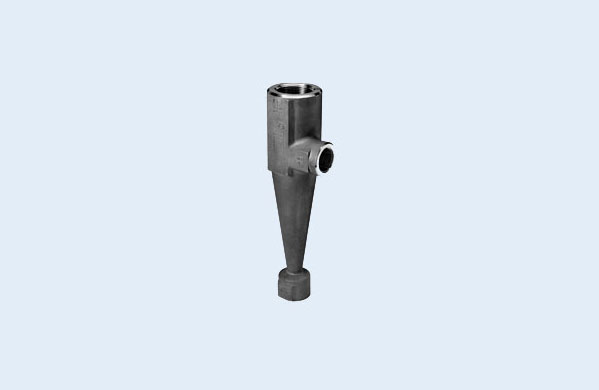

Cyclone Seperator
Cyclone seperator is used for seperating solid particles from the liquid. Clean Liquid about 80% is sent to seal chamber and solid particles with very little liquid about 20% is sent back to suction of the pump.
Cyclone Seperator
- Contaminations are automatically conveyed to the suction nozzle of
- the pump: maintenance-free mode of operation for guaranteed
reliability
- High filtration efficiency
- Wide range of products for the optimum solution for every application
- For operating pressures of up to 200 bar
- Optional in block-type design with integrated flange connections:
- low space requirements because of compact design
Parameter : |
Size |
: 1/2" |
Max Temperature |
: – 125 |
Max Pressure |
: – 60bar |
Density of solid particles has to be more than liquid.
Maximum solid contents > 10% by weight
Max viscosity of liquid – 20 centisokes
Pressure differential desired – 2 to 8.5 bar
Hardware – SS304 / SS316
Packing – Teflon
