Split Mechanical Seals
- Dry running
- Fully split components
- Ease of installation
- Balanced seal faces
These are Special mechanical seals having standard design arrangements with less varying sizes. These are usually used in some standard pumps and industries like grundfous pump, textile industries, boiler feed pumps. These seals have some special design and arrangement that fits to particular pump and application to reduce cost, space and time.

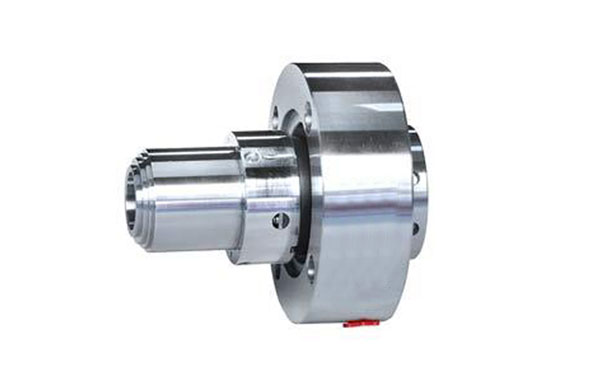

Mechanical seal designed is a unique seal developed to meet stringent technical requirements of Boiler feed water pumps. Rotating stationary ring design makes it suitable for high speed application & avoids critical requirement of stuffing box face squareness. Both the faces are having strong positive drive & locking arrangement which make seal very strong and sturdy. Thermodynamic circulation grooves inscribed on the rotating faces boost the cooling of the sliding faces by reducing the coefficient of friction and protecting the seal against thermal over loading. Increased coolant flow effected by the pumping screw & the fluid guiding channel combine to force the cold water into the gap between dynamic ring & stationary ring, blowing out gas bubbles and dirt particles & picking up frictional heat. In view of risk dynamic distortion because of high sliding velocity of over 25 m/sec the springs are located in the stationary part.
Parameter : | |
---|---|
Shaft Diameter | : 25 mm to 150 mm |
Pressure | : 50 to 140 bar (max ) |
Max. Temperature | : -20°C to +250°C |
Max. Speed | : <12000 RPM |
Seal Ring Faces : Carbon, Silicon Carbide, Tungsten Carbide
Secondary Seal : Viton, EPDM, Aflas, PTFE, GFT, TCV & FEP, Kalrez
MOC :SS 316, SS 304, Hast-C, Monel, Alloy-20

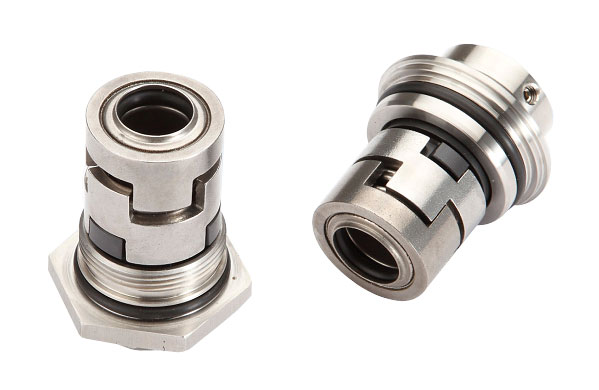

This seal is developed & equivalent to an original Grundfos seal. This seal is designed with single spring & o-ring with cartridge arrangement. These seals have threaded hex head which is easy to install in Grundfos make CR, CRN, and CRI series pumps, this seal is comfortable to used in wide range of application.
Parameter : | |
---|---|
Shaft diameter | : 12 MM, 16 MM, 22 MM |
Pressure | : upto 25 Bar |
Temperature | : -30°C to +200°C |
Speed | : up to 25m/s |
Seal Faces: Carbon, Silicon Carbide, Tungsten Carbide
Secondary Seal: Viton, EPDM, NBR
Hardware & Spring : SS316 , SS304
We are quite reputed among the manufacturers and exporters of Mechanical Seals for Textile Industry in India and various countries. The use of optimum quality materials in the manufacturing of the textile mechanical seals ensures high durability, waterproof, corrosion & abrasion resistance and auto resistance to climatic variations. Additionally, customers are eased with the availability of the textile seals that comply with the international quality standards.
Parameter : | |
---|---|
Shaft Dia | : standard |
Pressure | : normal |
Max. Temperature | : normal |
Seal Ring Faces : Carbon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316,HAST-C and Carpenter 42

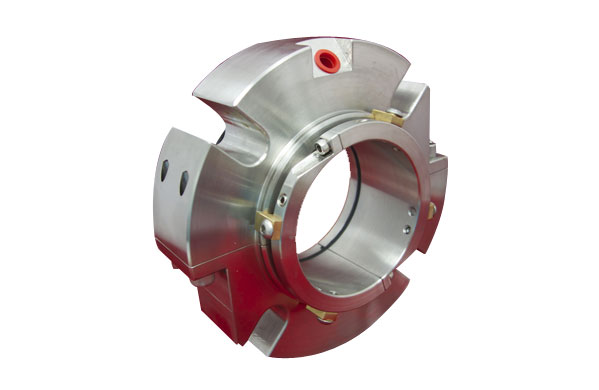

The split seal is perfect for equipment that is complicated and time consuming to disassemble such as large pumps, vertical pumps and horizontal split case pumps. This confirmed compact design can be used in a large variety of equipment and process materials.
Several pumps types lend themselves towards the application of radically divided or “split” seals. Large vertical pumps, close-coupled horizontal pumps, and further equipment, which require extensive disassembly to vary the mechanical seal, are all good candidates for mechanically split seal. Compression packing & the related routine maintenance can be eliminated.
Split seal is very easy to install, with minimum components to assemble. Small parts such as springs are fully contained. Mechanically split seals have been used widely in municipal water, pulp and paper, and many non-hazardous applications in other industries
Parameter : | |
---|---|
Shaft Dia | : 40mm to 160mm |
Pressure | : Up to 10 bar |
Max. Temperature | : -30°C to 120°C |
Speed | : 3000 RPM |
Seal Ring Faces : Carbon, TC and SiC
Seat Faces : SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316,HAST-C and Carpenter 42

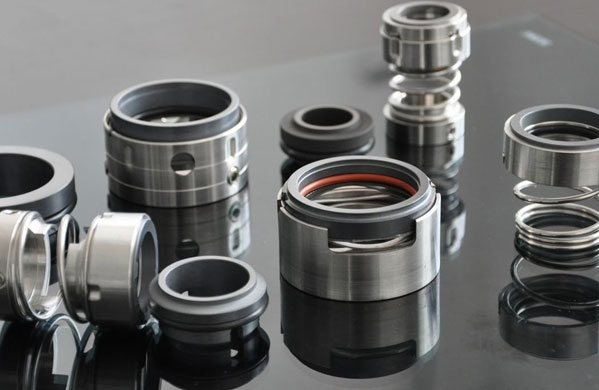

We are looked upon as one of the renowned food industry seals Manufacturer in India. The unmatched quality and unsurpassable performance has concerned customers from all round the globe to place bulk orders. The use of optimum quality materials in the manufacturing ensures high durability, tensile strength and resistivity to adverse conditions. Moreover, the Mechanical food industry seals offered by us are ideally designed to meet the applications.
Parameter : | |
---|---|
Shaft Dia | : as per required |
Pressure | : upto 10 Bar |
Temperature | : -30°C to 150°C |
Speed | : 3000 RPM |
Seal Ring Faces : Carbon, TC and SiC
Seat Faces :SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316,HAST-C and Carpenter 42

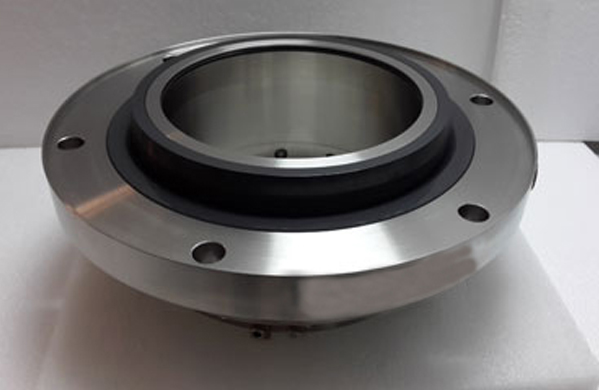

We provide unique designs that gives excellent results in all light to medium slurry. This seals satisfy the demand for advanced and reliable sealing solutions on even the heaviest of slurry applications typically found in mining applications.We made up of high quality packing with superior sealing capabilities. This sealing concept meets the increased sealing demands from our customers.
Parameter : | |
---|---|
Temperatures | : up to 150˚C |
Pressure | : up to 21 bar |
Speeds | : up to 11 m/s |
Percent solids | : 30% by weight |
Seal Ring Faces : SiC
Seat Faces :SiC and TC
Elastomer : Aflas , Viton , EPR , Kalrez
MOC : SS 316 Duplex (Alloy 255) Hastelloy C276
